Product Application:
Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.
| Product | Application |
| Small-size TFT LCD display (1.44inch~4.3inch) | mobile device, watch, toy, medical equipment, Office electronic equipment, camera, air-condition display, etc. |
| Mid-size TFT LCD display (5.0inch~10.0inch) | mobile device, medical equipment, car, automotive product, industrial control equipment, POS, PDA, Household Video doorbell, air-condition display, etc. |
| Big-size TFT LCD display (10inch and above) | educational product, automotive product, video door phone, Audiovisual equipment, DVD player, media play, tablet PC, Security Products, etc. |
| TN/STN//FSTN/OLED | elevator controller, watch, electronic product, air-condition display, all kinds of instrument, etc. |
| Plastic mould | industrial control equipment, electronic product, toy, Security Product, IT digital product, sports equipment, etc. |
General Specification:
| Item Name | 1.14 inch ST7789V 135X240 IPS TFT LCD display module all viewing angle with RGB MCU SPI interface and resistive touch panel |
| Color | 262K color |
| Pixel | RGB |
| Contrast Ratio | 500:1 |
| Brightness | 300cd/m2 |
| Outline Dimension | 17.60(W)X31.0(H)X1.6(T)mm |
| Viewing Area | N/A |
| Active Area | 14.86(W)X24.91(H)mm |
| Resolution | 135X240 |
| Dots | 0.153*0.153mm |
| Pitch | 0.5mm |
| Drive Power Supply Voltage | 3.3V |
| Viewing Angle | 12:00 |
| Operation Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C~ +80°C |
| Display Mode | TFT LCD |
| Touch panel | Resistive touch panel or capacitive touch panel |
| FPC Lenght | FPC connector type |
| Response Time | 100ms |
| IC | ST7789V |
| IC Packaging | COG |
FAQ:
Q: How can I trust your product quality?
A: Our Raw materials are all ROHS compliant .
Meanwhile, we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in High and Low Temperature & High Humidity Environment, ESD and anti-interference test , Drop(with package) and Vibration Test.
Our Touch Screens goes through Salt spray test, Hardness test, Steel ball Drop test, Flatness test, Thermal shock test…
--Our experience and proficiency make the qualification rate always being 99.7% or above.
Q:Which sizes of LCDs and Touch Panels do you provide?
A: Small sizes which include: 0.96”, 1.22”, 1.3”, 1.44”, 1.54”, 1.77”, 2.0”, 2.4”, 2.7”, 2.8”, 3.0”, 3.2”, 3.5”, 3.95”, 3.97”, 4.3”, 5”, 5.6”, 6.86”.
Middle sizes which include: 7”, 8”, 9”, 10.1”, 10.2”, 13.3”.
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, l
arge size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.
Product Tags:
|
|

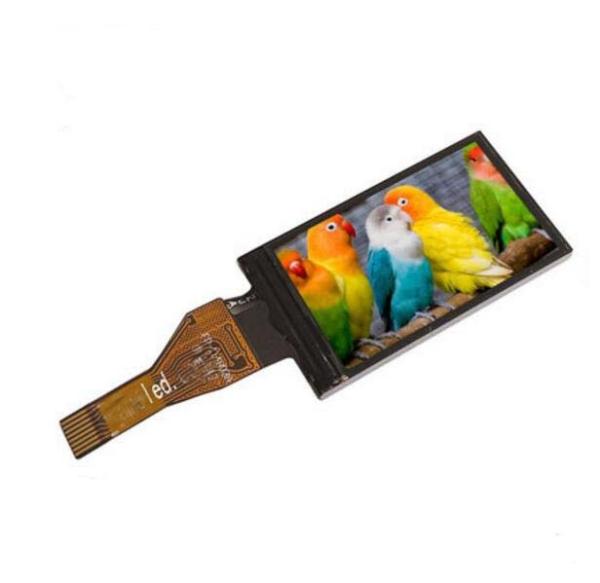

RoHs 1.14 Inch 262K Color Capacitive Touch Panel Images
|
