We offers a wide product range of small to medium sizes TFT display modules
in sizes ranging from 0.96” through 10.1”, no matter it is by engineering a
custom display module, or by implementing a standard display from our wide
selection of technologies, including being integrated with touch sensors
and/or cover lenses. These TFT LCD modules are including options of TFT
panel, TFT LCM with controller board, industry standard mono TFT LCM,
TFT color display, IPS display and wide operating temperatures of
-20°C to +70°C or -30°C to +80°C. The interface options are
MCU / RGB / SPI / UART / 8080 / LVDS. We also offer customization
of backlight or/and FPC. Our products have been applied in a wide
range of industries including E-cigarettes, wearable deivices, energy
meter equipment, fiscal processors, portable devices.

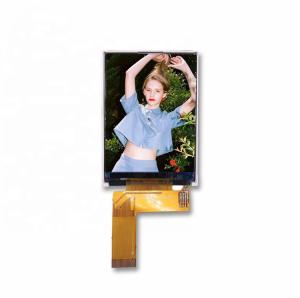

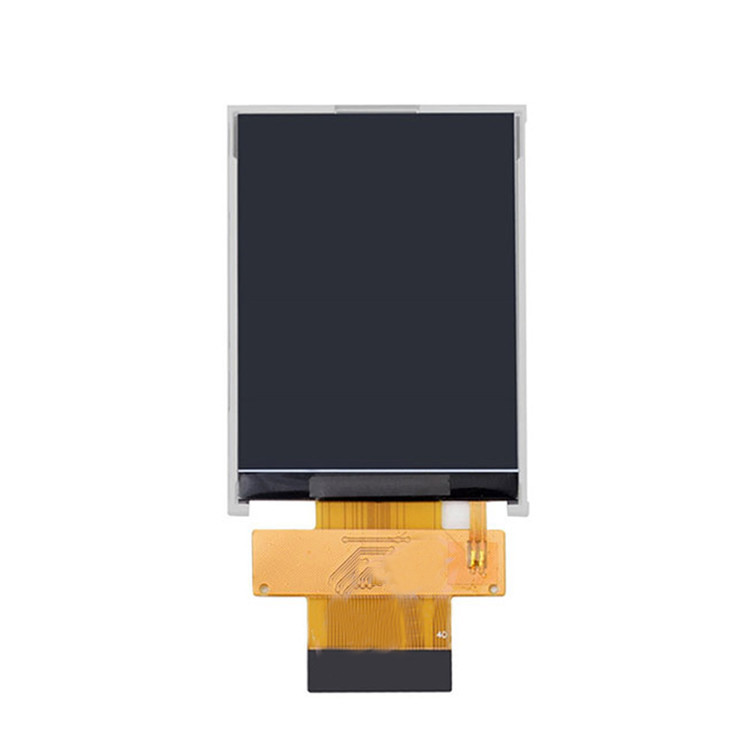

| Item | 2.4 Inch 240rgbx320 Resolution 8bit RGB Interface LCD Touch Module TFT Industrial Screen |
| Resolution | 240*320 |
| Outline Dimension | 42.72(H)*60.7(W)*2.21(T) |
| Active Area(mm) | 36.72(H)*48.96(W) |
| Interface | 16-bits MPU |
| Viewing Angle | All view angle |
| Driving IC | ST7789V |
| Display Mode | Transmissive/Normally black |
| Operating Temperature | -10°~60° |
| Storage Temperature | -20°~70° |
| Brightness | 250nits and 700nits |
FAQ:
Q: Is the product in stock? How long production cycle?
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.
Q2. What is the delivery time?
For samples: 15-20 working days upon receipt of the sample fee.
For cargo: 25-30 working days upon receipt of the payment.
Q3. What is the payment term?
50% deposit to issue production, 50% before shipping out.
Q4. What kind of transportation do you offer?
The goods can be shipped by sea, by air or by express such as DHL, UPS, TNT, Fedex, EMS.
Q5. How can I trust your product quality?
A: Raw materials are all ROHS compliant, The Display is an ISO9001:2008
and ISO9001:2015 Certified company, we've been adhering to the ISO standards strictly in our production.
Our products are 100% Visual and Function test before shipments.Meanwhile,
we do necessary Aging test and Reliability tests to our TFT Display modules, eg. Store and Operate in
High and Low Temperature & High Humidity Environment
